제품 규격

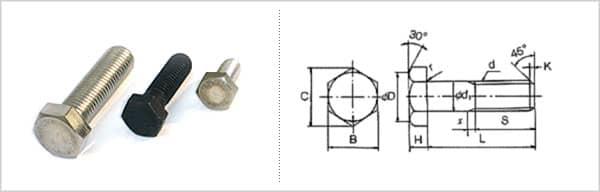

▣ Metric (KS B 1002 JIS B 1180)Unit : mm
| Bolt dia-meter | d1 | H | B | C App | R Min | S | Pitch | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Tolerance | Basic | Tolerance | Basic | Tolerance | Coa-res | Fine | ||||||||||
| finish | Semi-finish | Regular | finish | Semi-finish | Regular | finish | Semi-finish | Regular | |||||||||
| M6 | 6 | 0 -0.1 - | - 0 -0.2 | +0.6 -0.15 - | 4 | ±0.15 | ±0.25 | ±0.6 | 10 | 0 -0.2 - | 0 -0.6 - | 0 -0.6 - | 11.5 | 0.25 | 18 | 1 | - |
| M8 | 8 | 0 | +0.7 | 5.5 | 13 | 0 | 0 | 0 | 15 | 0.4 | 22 | 1.25 | 1 | ||||
| M10 | 10 | -0.15 | -0.2 | 7 | 17 | -0.25 | -0.7 | -0.7 | 19.6 | 0.4 | 26 | 1.5 | 1.25 | ||||
| M12 | 12 | 8 | 19 | 21.9 | 0.6 | 30 | 1.75 | 1.25 | |||||||||
| (M14) | 14 | 0 | +0.9 | 9 | ±0.3 | ±0.8 | 22 | 0 | 0 | 0 | 25.4 | 0.6 | 34 | 2 | 1.5 | ||
| M16 | 16 | -0.25 | -0.2 | 10 | 24 | -0.35 | -0.8 | -0.8 | 27.7 | 0.6 | 38 | 2 | 1.5 | ||||
| (M18) | 18 | 0 | 12 | 27 | 31.2 | 0.6 | 42 | 2.5 | 1.5 | ||||||||
| M20 | 20 | -0.2 | 13 | ±0.2 | 30 | 34.6 | 0.8 | 46 | 2.5 | 1.5 | |||||||
| (M22) | 22 | 14 | ±0.35 | ±0.9 | 32 | 37 | 0.8 | 50 | 2.5 | 1.5 | |||||||
| M24 | 24 | 0 | +0.95 | 15 | 36 | 0 | 0 | 0 | 41.6 | 0.8 | 54 | 3 | 2 | ||||
| (M27) | 27 | -0.35 | -0.35 | 17 | 41 | -0.4 | -1.0 | -1.0 | 47.3 | 1 | 60 | 3 | 2 | ||||
| M30 | 30 | 19 | 46 | 53.1 | 1 | 66 | 3.5 | 2 | |||||||||
| (M33) | 33 | 0 | 0 | +1.2 | 21 | ±0.25 | ±0.4 | ±1.0 | 50 | 57.7 | 1 | 72 | 3.5 | 2 | |||
| M36 | 36 | -0.25 | -0.4 | -0.4 | 23 | 55 | 0 | 0 | 0 | 63.51 | 1 | 78 | 4 | 3 | |||
| M42 | 42 | 26 | 65 | -0.45 | -1.2 | -1.2 | 75 | 1.2 | 90 | 4.5 | - | ||||||
